Ceské dráhy 109E

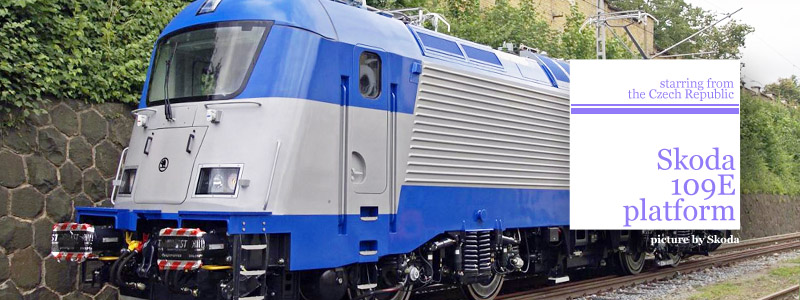

We had to wait for more than four years, but on 24 July 2008 the big day was there: the new Skoda 109E locomotive had its official roll-out. In Pilsen the blue and silver painted locomotive was presented for the international press that day. With the completion of the machine a whole new era has started for Skoda, presenting its first new electric locomotive development in fifteen years. With the 109E Skoda enters the third millennium with a product that has international ambitions and which does meet all the latest European standards. It is flexible and modular, has a top speed of 200 kph and is compatible with both AC and DC catenaries; basic characteristics of a multisystem locomotive nowadays.

The development of the 109E was initiated after the Czech national railways (CD) awarded Skoda with an order for 20 multisystem electrics in May 2004. The CD already started a first tender for new electrics back in 2002, but a second tender was needed, supported by European funds, to make it possible for the CD to really place an order. The CD plans on using their new locomotives, the designated CD 380 series, for passenger services on main corridors in their home country. Additionally, the CD plans on homologating the 380 series for Austria, Germany, Hungary, Poland and Slovakia.

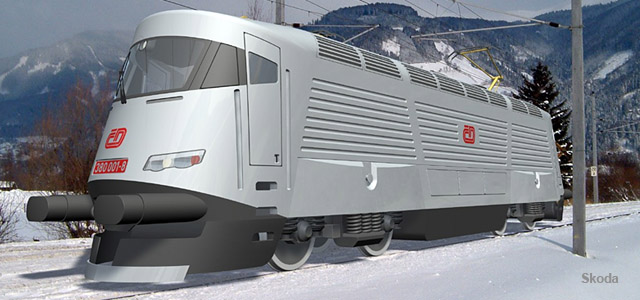

initial exterior design of the Skoda 109E

Very soon the first design impressions leaked, giving the world an idea how the exterior design of the 109E would be. What we saw was a very futuristic looking silver machine with a rounded cabs and side grids with diagonal lining. Porsche Design was responsible for this design, which immediately gave a face easy to recognize to the new and ambitious plans of Skoda.

revisited exterior design, meeting the EN15227 impact resistance standards

After that, the long and difficult phase started of making a feasible locomotive, able to fulfill its purpose, without loosing the original identity of the design. This process took around two years. In 2006 the final design was presented with a 1:20 scale model on the Innotrans 2006 international railway fair in Berlin. In December that year also a first body of the 1:1 scale version was ready for static testing. It was immediately clear that the looks of the 109E had changed drastically in the mean time.

the first complete body of a 109E is transported to for fatique tests at the end of 2006

Especially the construction of the cabins of the machine had to go through a long process of redesign to meet all the latest regulations concerning driver safety (e.g. fire resistance) and crash impact (deformation zones and energy absorption). Skoda states that the construction of the 109E corresponds to the specific characteristics of the Central European rail infrastructure. The 109E can deal with small curves and minimizes wear on the tracks. Last but not least, the 109E is prepared for installing ECTS, the European standard on board safety and signalling system.

Ceské dráhy 109E: news
2016
open news
2016-12-02 [CN/EU] CRRC confirms plan to buy Škoda Transportation
open news
2016-08-11 [CZ] CD 380 013 in a new livery -Slovenská strela-
open news
2016-04-10 [CZ/DE] Rumors thicken: Czech railways want Vectron for services to Germany
2015
open news
2015-12-28 [DE/CZ] CD 380 series prepares for its debute in Germany
open news
2015-11-27 [CZ] 109E locomotive dispute: CD has to pay Skoda
open news
2015-09-15 [CZ] New livery for CD 380 011: Nostalgie [updated]
open news
2015-05-22 [CZ/DE] Skoda 109E approved for Germany
open news
2015-01-13 Meanwhile on facebook :)
2014
open news
2014-11-20 [HU/CZ] Driver instruction on CD 380 continious into GySEV territory
open news
2014-11-19 [CZ] CD 380 002 -Sportuj s námi-
open news
2014-10-23 [CZ/HU] CD 380s in service on Praha - Budapest
open news
2014-10-05 [HU] Driver training with CD Class 380 in Hungary [updated]
open news
2014-06-04 [DE] Skoda locomotives go to DB Systemtechnik
open news
2014-05-30 [CZ/DE] CD 380 series on Prague > Berlin ( > Hamburg) route
open news
2014-05-07 [DE] CD 380 series: tests in Germany
open news
2014-02-14 [PL/CZ] Poland grants Škoda’s 109E electrics full authorisation
open news
2014-01-30 [HU] More 109E locomotives in Hungary for approval
open news
2014-01-22 [CZ/HU] CD 380 003 and 014 in Hungary for acceptance
open news
2014-01-11 [CZ/AT] CD 380 series in service in Austria
2013
open news
2013-12-10 [AT] Analyzing parasitic current with 380.011 + 380.002
open news
2013-11-16 [CZ/AT] CD 380 authorised for Austria until 30.06.2014
open news
2013-10-24 [DE/PL] Transition tests Germany - Poland with Skoda 109E
open news
2013-10-13 [SK] CD 380 011 in Eastern Slovakia
open news
2013-10-02 [CZ/SK] CD 380 003 in Bratislava [edited]
open news
2013-09-10 [HU] Skoda 109E no. 380 011 tested in Hungary
open news
2013-06-28 [CZ] Presentation of Skoda 380 007 -Emil Zátopek-
open news
2013-05-18 [CZ] Portrait of the D1 Express
open news
2013-04-20 [CZ] Locomotive 109E received homologation according to TSI
open news
2013-03-29 [HU] Skoda 109E in Hungary [updatedx2]
open news
2013-03-28 [CZ] Adjustments on the CD 380 series
2012
open news
2012-10-11 [CZ] 380 009 and 013 now dedicated to new D1 Express
open news
2012-09-30 [CZ] D1 Express is coming [updated]
open news
2012-05-09 [CZ] CD 380 011 - Vlakem na Euro -
open news
2012-04-03 [PL] Vectron DC and Skoda 109E evaluated by PKP IC
2011
open news
2011-11-07 [AT/CZ] impounded CD 380 004 free again [update]
open news
2011-10-30 [DE] Skoda 109E with ALEX coaches in Germany
open news
2011-10-19 [DE] Skoda in the night
open news
2011-10-13 [PL] TRAKO 2011: Skoda 109E no.20
open news
2011-10-02 [DE] Skoda 109E in Germany, Austria and Switserland
open news
2011-03-20 [CZ/AT] CD class 380 in Austria
2010
open news
2010-12-21 [CZ] CD 380 007 in action
open news
2010-12-16 [CZ] Regular service with Skoda 109E has started
open news
2010-05-27 [CZ] Skoda 109E: first run at the public network
2008
open news
2008-12-08 [CZ] Skoda 109E reaches for 200 kph
open news
2008-09-25 [DE] Skoda 109E @ Innotrans 2008
open news
2008-09-06 [CZ] Skoda to Velim
open news
2008-07-28 [CZ] Skoda 109E revealed
open news
2008-01-16 [CZ] first Skoda 190E multi-system locomotive in service before 2009
Ceské dráhy 109E: trial phase
380 001
As second machine of its type, CD 380 001 was presented to the outside world. While 380 002 already started dynamic trails at Velim (CZ), 380 001 was presented at the Innotrans 2008 international raileway fair in Berlin.

380 002
On 24.07.2008, one 109E locomotive was presented at the Skoda factory, this was 380 002. At 03.09.2008 it arrived in Velim, for dynamic trials.

In 2009 both 380 001 and 002 were present in Velim. Test were done in double traction. A 380 unit was even combined there with a Railjet-rake of the Austrian railways.


380 003
The third engine made its public debute in September 2009.



380 007 and 008
Unit 7 and 8 were the first to be used for trails during revenue service, starting in 2010.


380 011
Unit 11 was present at Innotrans 2010 in Berlin.

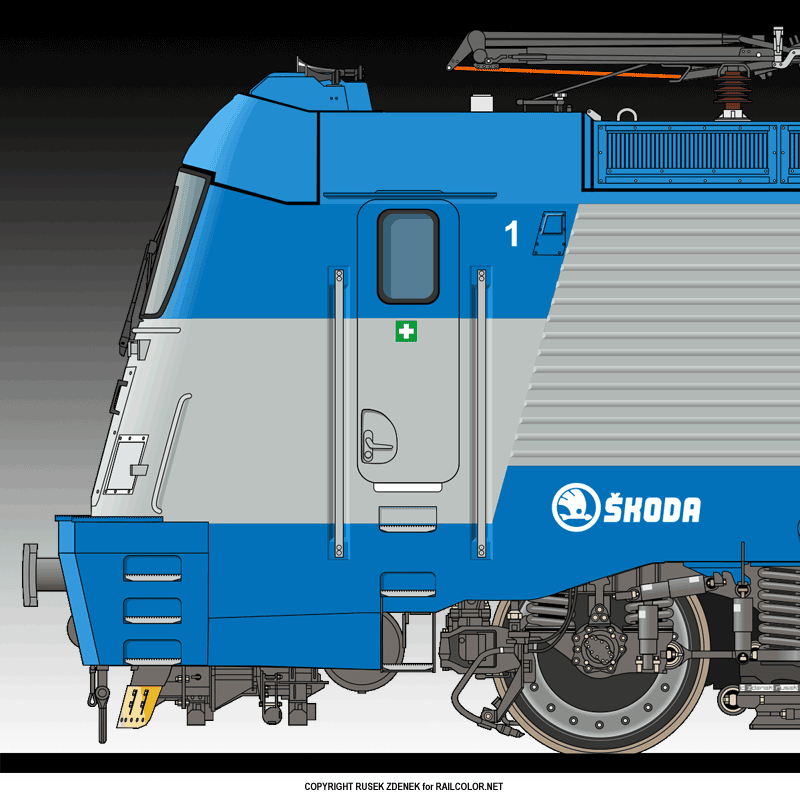

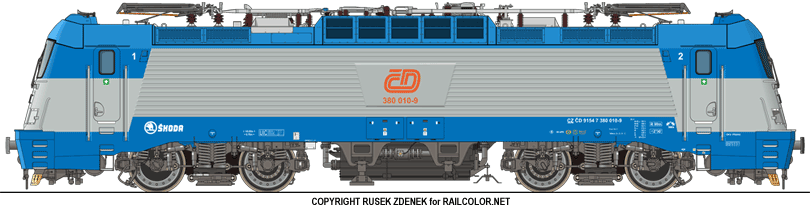

Ceské dráhy 109E: liveries
Ceské dráhy 109E: Select your Locomotive:
Škoda 9771 2008 109E0 Bo'Bo'-el ČD  "380 001-8" 21 picture(s) available
Škoda 9772 2008 109E0 Bo'Bo'-el ČD  "380 002-6" 41 picture(s) available
Škoda 9432 2009 109E0 Bo'Bo'-el ČD  "380 003-4" 19 picture(s) available   revision data available
Škoda 9774 2009 109E0 Bo'Bo'-el ČD  "380 004-2" 30 picture(s) available   revision data available
Škoda 9434 2009 109E0 Bo'Bo'-el ČD  "380 005-9" 18 picture(s) available
Škoda 9435 2009 109E0 Bo'Bo'-el ČD  "380 006-7" 28 picture(s) available   revision data available
Škoda 9436 2010 109E0 Bo'Bo'-el ČD  "380 007-5" 26 picture(s) available   revision data available
Škoda 9437 2010 109E1 Bo'Bo'-el ČD  "380 008-3" 22 picture(s) available   revision data available
Škoda 9779 2009 109E1 Bo'Bo'-el ČD  "380 009-1" 17 picture(s) available     graphics available
Škoda 9439 2010 109E1 Bo'Bo'-el ČD  "380 010-9" 17 picture(s) available     graphics available
Škoda 9440 2010 109E1 Bo'Bo'-el ČD  "380 011-7" 42 picture(s) available
Škoda 9782 2010 109E1 Bo'Bo'-el ČD  "380 012-5" 13 picture(s) available
Škoda 9783 2010 109E1 Bo'Bo'-el ČD  "380 013-3" 26 picture(s) available   revision data available
Škoda 9443 2010 109E1 Bo'Bo'-el ČD  "380 014-1" 23 picture(s) available   revision data available
Škoda 9444 2010 109E1 Bo'Bo'-el ČD  "380 015-8" 16 picture(s) available
Škoda 9445 2010 109E1 Bo'Bo'-el ČD  "380 016-6" 26 picture(s) available   revision data available
Škoda 9446 2010 109E1 Bo'Bo'-el ČD  "380 017-4" 25 picture(s) available   revision data available
Škoda 9788 2010 109E1 Bo'Bo'-el ČD  "380 018-2" 15 picture(s) available   revision data available
Škoda 9448 2011 109E1 Bo'Bo'-el ČD  "380 019-0" 17 picture(s) available
Škoda 9449 2011 109E1 Bo'Bo'-el ČD  "380 020-8" 19 picture(s) available   revision data available
