SNCF BB 36000 Astride

Being built in 1995, the pre-series BB 36001 was outshopped at GEC Alsthom's Belfort factory in January 1996. From then, the approval process started. Serie delivery was initiated in 1997. In 1998, a provisional limited authorization was granted for France, while a second batch of thirty locomotives was ordered, to boost freight traffic with Italy.

International services to Belgium and Italy
The year 2000 saw the 36000 getting approved for operation in Italy, and the beginning of the delivery of the second batch; BB 36031 to 060. Where the first batch had a red cabin front, the second serie got this part painted in green, the new base colour of all French locomotives running for the new freight division of the French railways at that time; Fret SNCF.

Adjustments for services in Italy; the BB 36200 and BB 36300 subseries
From 2003 to 2007, all the locomotives from the second batch were modified, to be better fitted for heavy freight haulage through the Alps. Multiple unit control and automatic fire detection/extinction was installed. In a first step, twelve locomotives were modified and renumbered as BB 36200. Eight other locomotives received the same modifications, plus SAFI (emergency brake override), for use with the AFA (Rolling motorway) from Aiton [F] to Orbassano [I]. They were renumbered as BB 36300. Step by step, all BB 36200s were then converted to the BB 36300 version. Finally, in 2006 and 2007, also the 36051 to 36060 were converted into BB 36300s, so all second batch units are the same since then. Also, the "greens" are all specialized for the international France-Italy connection. BB 36300s can run in multiple, but that is only allowed in Italy and France under 1,5 kV DC.

Locomotives sold to Trenitalia and Akiem
32 units are no longer property of the French railways: In 2005, as a participation in providing rolling stock for AFA, Trenitalia purchases the BB 36339 and BB 36348 from the SNCF. In July 2010, BB 36001 to 36030 were sold to lease company Akiem. Now being lease locomotives, several machines are hired to other operators as SNCF, in France and abroad.
SNCF/AKIEM BB 36000 Astride: select your locomotive

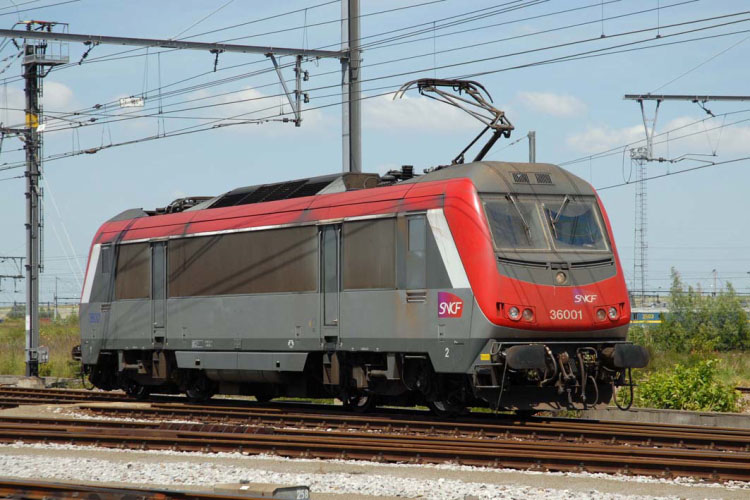

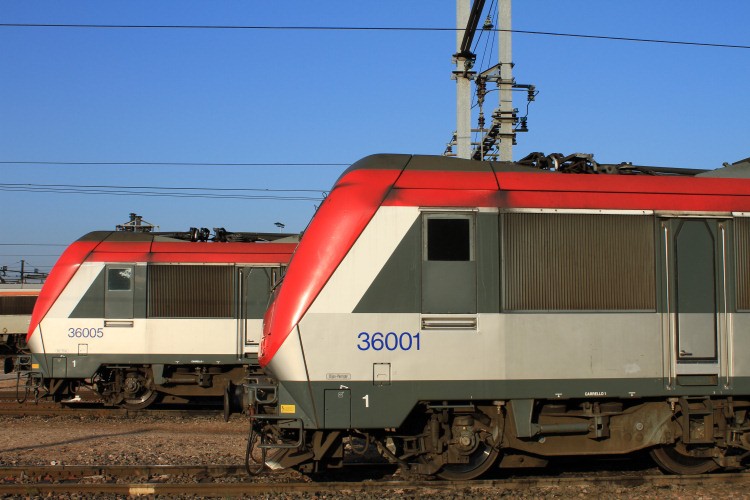

GEC ALSTHOM BB36001 ? BB 36000 Bo'Bo'-el AKIEM  "36001" 11 picture(s) available
GEC ALSTHOM BB36002 ? BB 36000 Bo'Bo'-el AKIEM  "36002" 8 picture(s) available
GEC ALSTHOM BB36003 1998 BB 36000 Bo'Bo'-el AKIEM  "36003" 7 picture(s) available
GEC ALSTHOM BB36004 1998 BB 36000 Bo'Bo'-el AKIEM  "36004" 10 picture(s) available
GEC ALSTHOM BB36005 1998 BB 36000 Bo'Bo'-el AKIEM  "36005" 13 picture(s) available
GEC ALSTHOM BB36006 1998 BB 36000 Bo'Bo'-el AKIEM  "36006" 7 picture(s) available
GEC ALSTHOM BB36007 1998 BB 36000 Bo'Bo'-el AKIEM  "36007" 14 picture(s) available
GEC ALSTHOM BB36008 1998 BB 36000 Bo'Bo'-el AKIEM  "36008" 6 picture(s) available
GEC ALSTHOM BB36009 1998 BB 36000 Bo'Bo'-el AKIEM  "490 001" 8 picture(s) available   revision data available
GEC ALSTHOM BB36010 1998 BB 36000 Bo'Bo'-el AKIEM  "36010" 17 picture(s) available
GEC ALSTHOM BB36011 1998 BB 36000 Bo'-Bo'-el AKIEM  "36011" 15 picture(s) available
GEC ALSTHOM BB36012 1998 BB 36000 Bo'Bo'-el AKIEM  "36012" 11 picture(s) available
Alstom BB36013 1998 BB 36000 Bo'Bo'-el AKIEM  "36013" 10 picture(s) available
Alstom BB36014 1998 BB 36000 Bo'Bo'-el AKIEM  "36014" 5 picture(s) available
Alstom BB36015 1998 BB 36000 Bo'-Bo'-el AKIEM  "36015" 18 picture(s) available
Alstom BB36016 1998 BB 36000 Bo'Bo'-el AKIEM  "36016" 6 picture(s) available
Alstom BB36017 1999 BB 36000 Bo'Bo'-el AKIEM  "36017" 4 picture(s) available
Alstom BB36018 1999 BB 36000 Bo'Bo'-el AKIEM  "36018" 11 picture(s) available
Alstom BB36019 1999 BB 36000 Bo'Bo'-el AKIEM  "36019" 9 picture(s) available
Alstom BB36020 1999 BB 36000 Bo'Bo'-el AKIEM  "36020" 3 picture(s) available
Alstom BB36021 1999 BB 36000 Bo'Bo'-el AKIEM  "36021" 8 picture(s) available
Alstom BB36022 1999 BB 36000 Bo'Bo'-el AKIEM  "36022" 14 picture(s) available
Alstom BB36023 2001 BB 36000 Bo'Bo'-el AKIEM  "36023" 12 picture(s) available
Alstom BB36024 1999 BB 36000 Bo'Bo'-el AKIEM  "36024" 6 picture(s) available
Alstom BB36025 2000 BB 36000 Bo'Bo'-el AKIEM  "36025" 7 picture(s) available
Alstom BB36026 1999 BB 36000 Bo'Bo'-el AKIEM  "36026" 9 picture(s) available
Alstom BB36027 1999 BB 36000 Bo'Bo'-el AKIEM  "36027" 7 picture(s) available
Alstom BB36028 1999 BB 36000 Bo'Bo'-el AKIEM  "36028" 7 picture(s) available
Alstom BB36029 2000 BB 36000 Bo'Bo'-el AKIEM  "36029" 5 picture(s) available
Alstom BB36030 2000 BB 36000 Bo'Bo'-el AKIEM  "36030" 4 picture(s) available
Alstom BB36031 2000 BB 36000 Bo'Bo'-el SNCF  "E436331MF" 11 picture(s) available
Alstom BB36032 2000 BB 36000 Bo'Bo'-el SNCF  "E436332MF" 2 picture(s) available
Alstom BB36033 2000 BB 36000 Bo'Bo'-el SNCF  "E436333MF" 7 picture(s) available
Alstom BB36034 2000 BB 36000 Bo'Bo'-el SNCF  "E436334MF" 8 picture(s) available

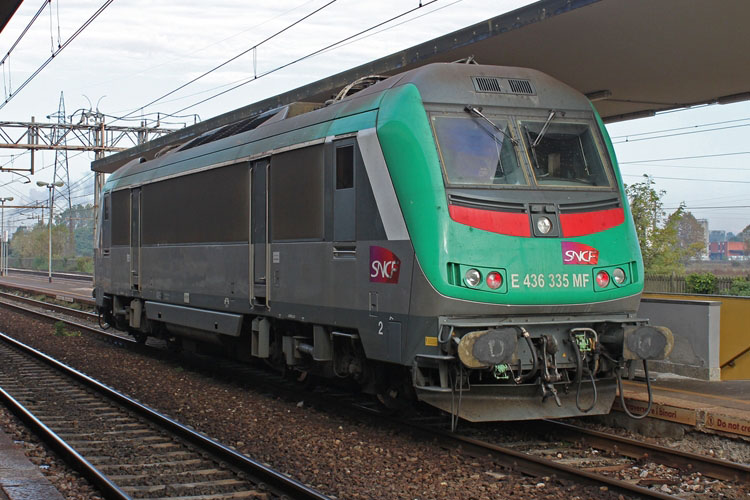

Alstom BB36035 2000 BB 36000 Bo'Bo'-el SNCF  "E436335MF" 7 picture(s) available
Alstom BB36036 2000 BB 36000 Bo'Bo'-el SNCF  "E436336MF" 8 picture(s) available
Alstom BB36037 2000 BB 36000 Bo'Bo'-el SNCF  "E436337MF" 6 picture(s) available
Alstom BB36038 2000 BB 36000 Bo'Bo'-el SNCF  "E436338MF" 6 picture(s) available
Alstom BB36039 2000 BB 36000 Bo'Bo'-el Trenitalia  "436339" 3 picture(s) available
Alstom BB36040 2001 BB 36000 Bo'Bo'-el SNCF  "E436340MF" 4 picture(s) available
Alstom BB36041 2001 BB 36000 Bo'Bo'-el SNCF  "E436341MF" 5 picture(s) available
Alstom BB36042 2001 BB 36000 Bo'Bo'-el SNCF  "E436342MF" 7 picture(s) available
Alstom BB36043 2000 BB 36000 Bo'Bo'-el SNCF  "E436343MF" 7 picture(s) available
Alstom BB36044 2001 BB 36000 Bo'Bo'-el SNCF  "E436344MF" 6 picture(s) available
Alstom BB36045 2001 BB 36000 Bo'Bo'-el SNCF  "E436345MF" 9 picture(s) available
Alstom BB36046 2001 BB 36000 Bo'Bo'-el SNCF  "E436346MF" 5 picture(s) available
Alstom BB36047 2001 BB 36000 Bo'Bo'-el SNCF  "436347" 2 picture(s) available
Alstom BB36048 2001 BB 36000 Bo'Bo'-el Trenitalia  "436348" 3 picture(s) available
Alstom BB36049 2001 BB 36000 Bo'Bo'-el SNCF  "436349" 1 picture(s) available
Alstom BB36050 2001 BB 36000 Bo'Bo'-el SNCF  "436350" 4 picture(s) available
Alstom BB36051 2001 BB 36000 Bo'Bo'-el SNCF  "E436351MF" 6 picture(s) available
Alstom BB36052 2001 BB 36000 Bo'Bo'-el SNCF  "E436352MF" 11 picture(s) available
Alstom BB36053 2001 BB 36000 Bo'Bo'-el SNCF  "E436353MF" 7 picture(s) available
Alstom BB36054 2001 BB 36000 Bo'Bo'-el SNCF  "E436354MF" 14 picture(s) available
Alstom BB36055 2001 BB 36000 Bo'Bo'-el SNCF  "E436355MF" 14 picture(s) available
Alstom BB36056 2001 BB 36000 Bo'Bo'-el SNCF  "E436356MF" 9 picture(s) available
Alstom BB36057 2001 BB 36000 Bo'Bo'-el SNCF  "E436357MF" 12 picture(s) available
Alstom BB36058 2001 BB 36000 Bo'Bo'-el SNCF  "E436358MF" 12 picture(s) available
Alstom BB36059 2001 BB 36000 Bo'Bo'-el SNCF  "E436359MF" 7 picture(s) available
Alstom BB36060 2001 BB 36000 Bo'Bo'-el SNCF  "E436360MF" 10 picture(s) available
