Trenitalia E412
The E 412 series for Trenitalia is based on AdTranz' Eco2000 platform. This platform was developed by ABB-Henschel in early 90s, before it merged into AdTranz. Therefore the E 412 is related to the DB 101 series and is partially a predecessor of the later-to-be-introduced Traxx platform. AdTranz constructed twenty units of the E 412 series in Vado Ligure, the factory of former Tecnomasio.

First trials with the Brenner-locos, as they were called in these days, started late in 1997. The E 412s are three-tension locomotives for 1,5kV (although with reduced power) and 3 kV DC combined with 15kV AC. Also, with these machines the Italian railways would be able to cross the Alps. The E 412 therefore were tested in Italy, Austria, Switserland and Germany in 1997 and 1998.

However, delivery of the machines was delayed. Especially the heavy weight (89 tonnes) was a difficult hurdle to take in the approval process. Finally, in June 1999, the E 412 012 and 013 were the first two units that were officially delivered to Trenitalia. The 001 was the last one in July 2000.

In Vado Ligure, three more, identical (well okay, the driver dask was mirrored) locomotives were built for the Polish railways (EU43 001-003). These machines finally ended up with RTC, a open access operator in Italy, together with five machines built under license in Wroclaw, Poland.

Other locomotives that are related to the E 412 are the PKP 113E/EU11/Trenitalia E405 series and the OSE 220 series diesel-electrics. They are also part of the Eco2000-family.

Trenitalia E412: news
open news

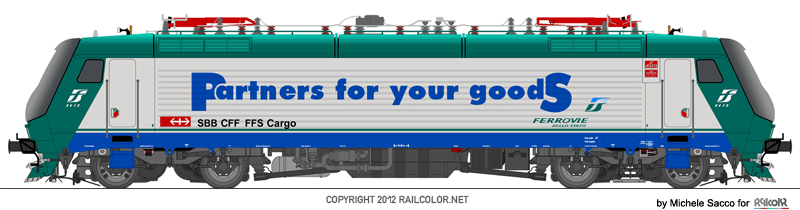

2012-03-15 [IT] Trenitalia E412 drawings made by Michele Sacco
open news
1999-08-05 [AT/IT] FS E 412 running 220 kph in Austria
open news
1997-11-30 [CH/IT] FS E 412 002 arrives in Switserland
open news
1996-07-30 [IT] first E 412 completed
Trenitalie E412: select your locomotive
Tecnomasio 7416 1997 E412 Bo'Bo'-el E 412 001 5 picture(s) available     graphics available
Tecnomasio 7417 1997 E412 Bo'Bo'-el E 412 002 6 picture(s) available   revision data available
Tecnomasio 7418 1997 E412 Bo'Bo'-el E 412 003 10 picture(s) available
Tecnomasio 7419 1997 E412 Bo'Bo'-el E 412 004 17 picture(s) available     graphics available
Tecnomasio 7420 1997 E412 Bo'Bo'-el E 412 005 5 picture(s) available   revision data available
Tecnomasio 7421 1997 E412 Bo'Bo'-el E 412 006 7 picture(s) available   revision data available graphics available
Tecnomasio 7422 1997 E412 Bo'Bo'-el E 412 007 14 picture(s) available
Tecnomasio 7423 1997 E412 Bo'Bo'-el E 412 008 11 picture(s) available
Adtranz 7424 1997 E412 Bo'Bo'-el E 412 009 13 picture(s) available
Tecnomasio 7425 1997 E412 Bo'Bo'-el E 412 010 5 picture(s) available
Adtranz 7426 1997 E412 Bo'Bo'-el E 412 011 5 picture(s) available       vehicle is scrapped
Adtranz 7427 1997 E412 Bo'Bo'-el E 412 012 13 picture(s) available
Adtranz 7428 1997 E412 Bo'Bo'-el E 412 013 11 picture(s) available     graphics available
Tecnomasio 7429 1997 E412 Bo'Bo'-el E 412 014 10 picture(s) available   revision data available
Tecnomasio 7430 1997 E412 Bo'Bo'-el E 412 015 8 picture(s) available
Tecnomasio 7431 1997 E412 Bo'Bo'-el E 412 016 6 picture(s) available   revision data available
Adtranz 7432 1997 E412 Bo'Bo'-el E 412 017 9 picture(s) available   revision data available
Tecnomasio 7433 1997 E412 Bo'Bo'-el E 412 018 9 picture(s) available   revision data available
Adtranz 7434 1997 E412 Bo'Bo'-el E 412 019 11 picture(s) available     graphics available
Adtranz 7435 1997 E412 Bo'Bo'-el E 412 020 8 picture(s) available   revision data available
