in short |
|
1st batch |
| FER (Ferrovie Emilia Romagna) is a railoperator from Italy, that is active in passenger and freight transportation since 2001. Ordered in three stages, the FER operates ten Traxx P160 DCP single cab electrics, identical to the E464 series for Trenitalia. Like those, all the FER units are built at Bombardier's factory in Vado Ligure, Italy.
Batch 1 and 2 were delivered in 2004-2006 and have traditional coupling systems and buffers; Unit 890-893 from 2009 have automatic couplings and no buffers. All units are being used for passenger services in combination with double deck rakes.
 All ten units were delivered in the attractive white, green and red livery of the FER. |
| |
|
|
| 3 locomotives |
| order date 2003 |
| delivery period __.2004 - __.2005 |
| > designation 464 901-903 |
| |
| 2nd batch |
| 3 locomotives |
| order date 2005 |
| delivery period __.2006 - __.2006 |
| > designation 464 904-906 |
| |
| 3rd batch |
| 4 locomotives |
| order date 2008 |
| delivery period __.2010 - __.2010 |
| > designation 464 890-893 |
| |
operator official website: |
| fer-online.it/en/company |
Bombardier official website: |
| http://www.transportation.bombardier.com |
|
| |
|
|
|
|
|
|
|
|
|
2013-02-14
|
[IT] Trenitalia E464 delivery completed
|
|
|
|
update 2013|02|14
[IT] Trenitalia E464 delivery completed
 Today, Bombardier in Vado Ligure will deliver the very last E464 locomotive to Trenitalia: E464 688. An era comes to and end, the production of this type started 14 years ago, in 1999.
Bombardier has built a staggering 699 units of this type. E464 001-688 for Trenitalia, ten machines for FER and one for TFT.
|
|
|
|
|
|
FER E464: Technical specs |
|
| Product name |
Traxx P160 DCP |
| Product description |
asynchrone electric locomotive for direct current |
| Power system |
3 kV (and 1,5kV according to Bombardier) |
| Length |
15.750 mm |
| Wheel base |
7.540 mm |
| No. axles / Axle arrangement: |
4 / Bo' Bo' |
| Track gauge |
1435 mm |
| Total weight |
72 tonnes |
| Top speed |
160 kph |
| Power rating |
3.500 kW |
| Max. starting tractive effort |
200 kN |
|
|

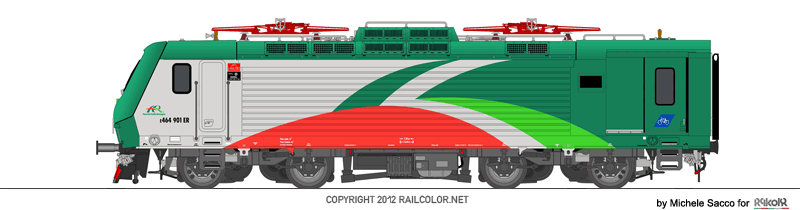

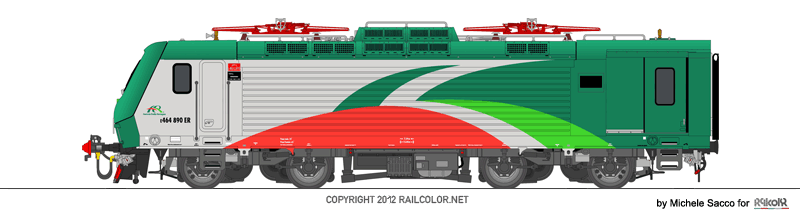

| All ten FER units have a distinctive livery in green, red and white. Both the left and the right side are different. The livery of the hird batch is slightly different from the first six units. E 464 890: |
|
|
|
