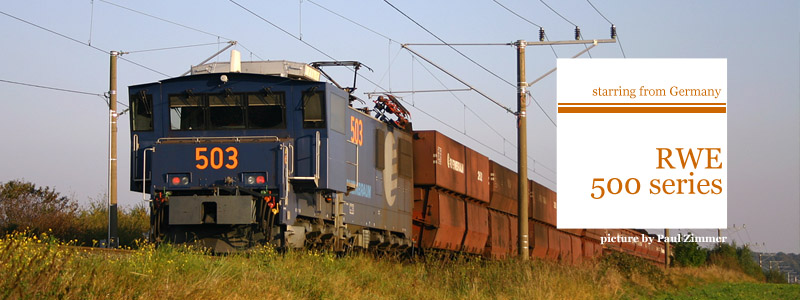

 The ten EL 2000 locomotives of RWE Power (formerly known as Rheinbraun) are a special product for services on the normal gauge railway network of this electric power company. RWE has three opencast mines as well as brown coal power stations (*) in the region between Cologne and Aachen. For the transport between the opencast mines and the power stations RWE Power uses conveyers and a large railway network. The loading gauge and axle load is bigger than on normal DB railway lines .
(*) comment: RWE Power also owens power plants in other regions, but the rail network is restricted to the Rheinische Braunkohlerevier between Köln und Aachen.
Our thanks goes out to Paul Zimmer, author of this section.
|
|
|
10 locomotives |
order date __.__.1997 |
delivery period 1999-2000 |
> designation 501-510 |
|
technical details |
product name: ADtranz EL2000 |
top speed: 60 kph |
4 axles / Bo'Bo' wheel-arrangement |
power system: 6 kV, 50 Hz |
weight: 140 t |
continous power rating: 2800 kW |
starting traction effort: 500 kN |
|
operator official website: |
http://www.rwe.com |
Bombardier official website: |
http://www.transportation.bombardier.com |
|
|
|
|
|
|
|
RWE 500: general information |
|
In 1997 the formerly Rheinbraun subscribed a 38 million euro contract for the delivery of ten locomotives including square parts. The locomotives were built between 1999 and 2000 in Adtranz factory (now Bombardier) in Kassel (Germany) and should replace a part of the old EL1-locomotives, which were the first locomotives with thyristor technology. The presentation of the first locomotive was in august of 1999, although 501 made several test for five months before. The design of the locomotives is rationally and characteristically because of the control desks in the side gondolas.
The two lateral control desks (use depending on the location of the signals), give the possibility to use the locos in pushed operations. In this case an acoustic signal is used by the trains. Of course there's a control desk in the middle of the cab for driving forward. Adtranz uses modular mechanical, electrical and pneumatic systems and an efficiently diagnostic system for lower maintenance costs. The locomotives have additionally two little pantographs on the sides for use under the loading facility. Because of the loading gauge the locomotives were brought from the Adtranz factory without the cab extensions.
|
|
|
|
2017-01-07
|
[DE] Back in business: RWE 506 [updated]
|
|
update 2017|01|07
[DE] Back in business: RWE 506 [updated]

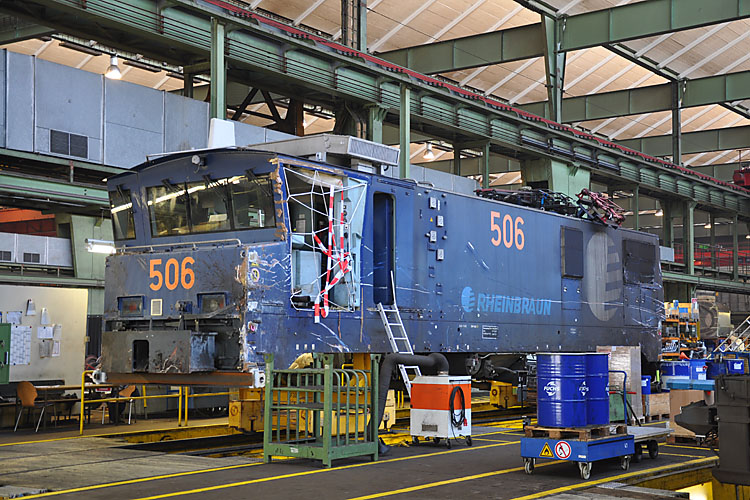

On 14.02.2015, RWE locomotive no. 506 crashed. After its complicated recovery, the machine was re-instated at RWE's depot in Frechen-Grefrath. With REV date 23.11.2016, the locomotive is now back in service, fully repainted in blue. Its logos and numbers are of a new design, large, bright and white. - Eisenbahn Revue International 1/2017
Update: An image of RWE 506 in its new livery. Photo: Martijn Schokker
|
|
|
|
2015-03-02
|

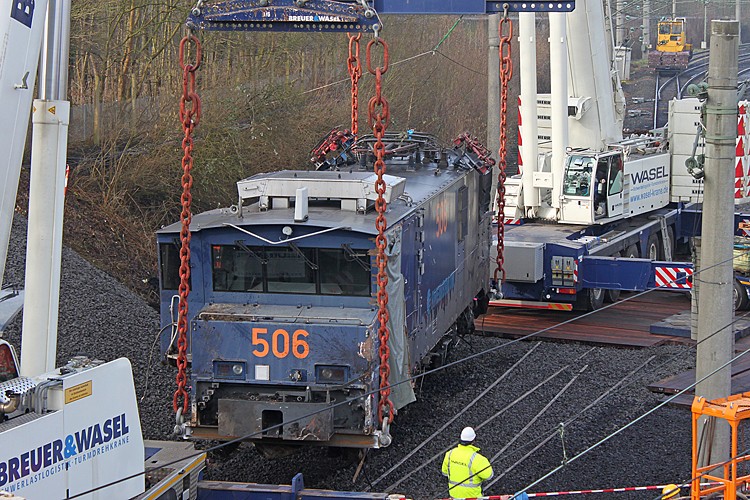

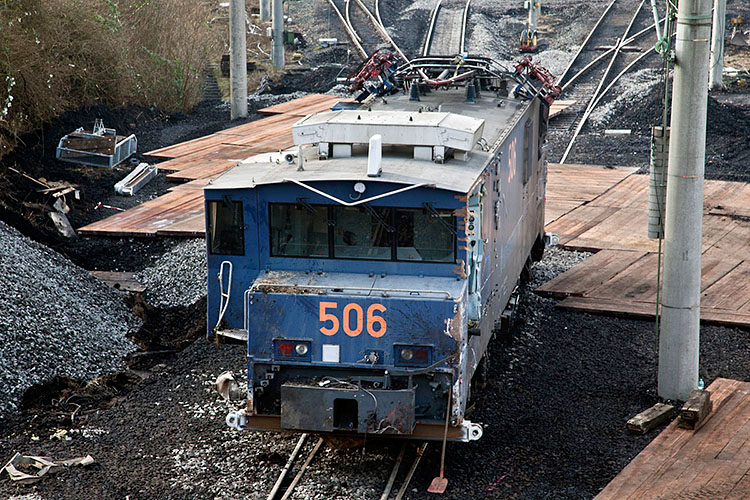

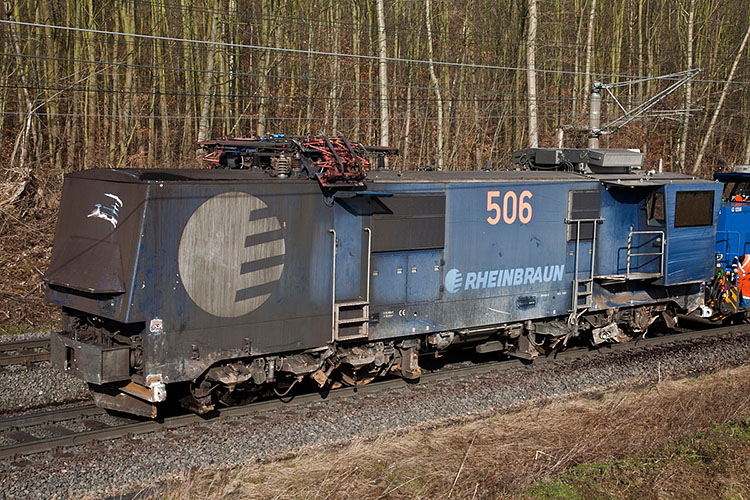

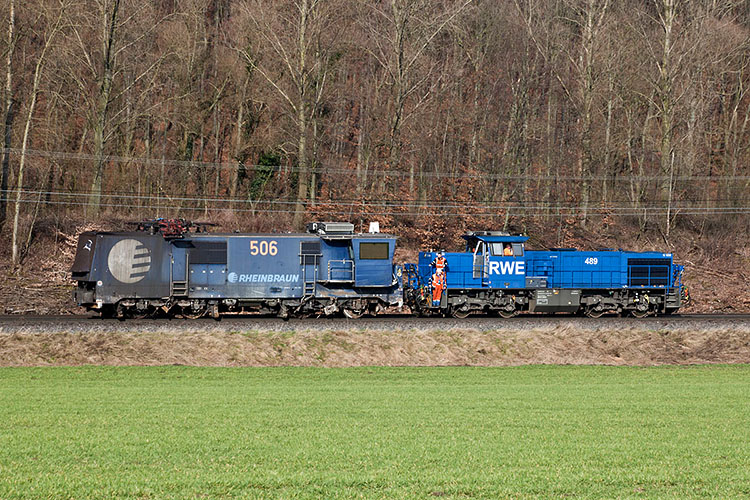

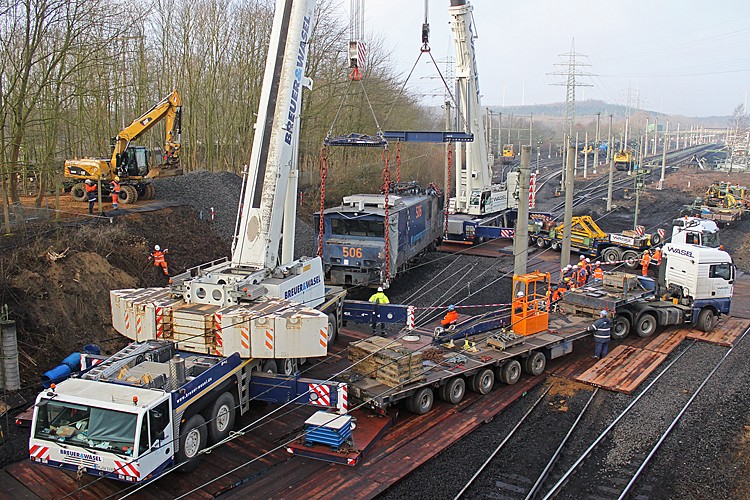

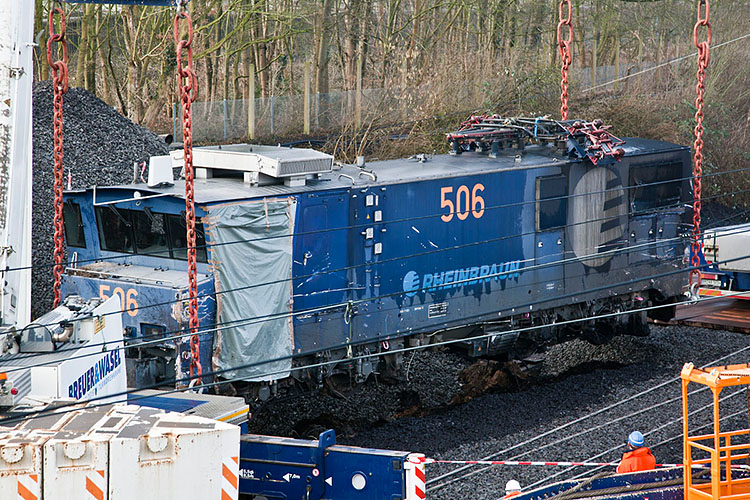

[DE] The recovery of RWE 506
|
|
|
2015-02-16
|
[DE] Train crash in Frimmersdorf [correction]
|
|
update 2015|02|16
[DE] Train crash in Frimmersdorf [correction]

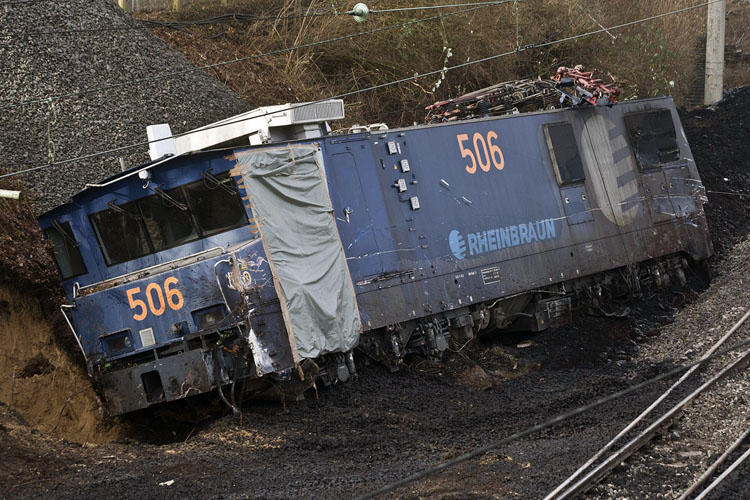

On 14.02.2015, two freight trains collided near the Frimmersdorfer Power station. Involved was a RWE train with a 500 series locomotives (no.503) and a DB Schenker train pulled by a 189. Involved were two RWE trains, we see one 500 series locomotives (no.506). The two engine drivers were sent to the doctor for a check-up but were fine. The damage to rolling stock and infrastructure is considerable. - PB/TW
Thank you for the corrective messages all of you!
|
|
|
|
|
RWE 500: Select your locomotive |
|
Adtranz |
33318 |
1999 |
EL 2000 |
Bo'Bo'-el |
501 |
 |
|
 |
|
|
Adtranz |
33319 |
1999 |
EL 2000 |
Bo'Bo'-el |
502 |
 |
|
 |
|
|
Adtranz |
33320 |
2000 |
EL 2000 |
Bo'Bo'-el |
503 |
 |
|
 |
|
|
Adtranz |
33321 |
2000 |
EL 2000 |
Bo'Bo'-el |
504 |
 |
|
 |
|
|
Adtranz |
33322 |
2000 |
EL 2000 |
Bo'Bo'-el |
505 |
 |
|
 |
|
|
Adtranz |
33323 |
2000 |
EL 2000 |
Bo'Bo'-el |
506 |
 |
|
 |
|
|
Adtranz |
33324 |
2000 |
EL 2000 |
Bo'Bo'-el |
507 |
 |
|
 |
|
|
Adtranz |
33325 |
2000 |
EL 2000 |
Bo'Bo'-el |
508 |
 |
|
 |
|
|
Adtranz |
33326 |
2000 |
EL 2000 |
Bo'Bo'-el |
509 |
 |
|
 |
|
|
Adtranz |
33327 |
2000 |
EL 2000 |
Bo'Bo'-el |
510 |
 |
|
 |
|
|
|
|
|
|
