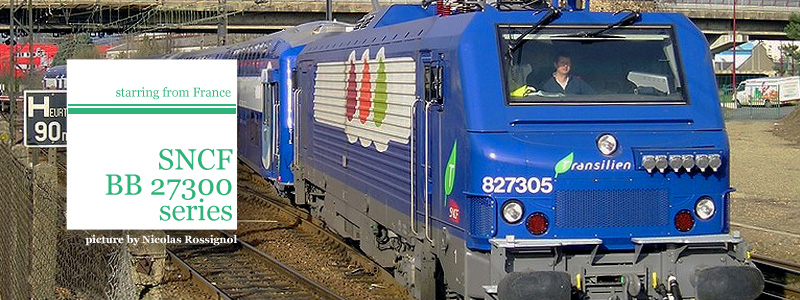

SNCF Transilien BB 27300
in short
1st order
SNCF also ordered Alstom Prima locomotives for its Transilien department, operating the (sub)urban railway network around Paris (Ile-de-France / IDF). Unlike all other Prima 1 types, the Transilien machines are equipped for passenger services, able to run 160 kph and to be used in push-pull services.

For the distant future, the SNCF keeps the possibility open to convert its IDF-Prima's to 'normal' BB 27000 machines for freight service; The rakes the BB 27300s are pushing/pulling right now, will be withdrawn earlier than the locomotives and most likely trainsets will replace them.

Note that the serie is designeted BB 27300, but that machines are actually numbered 827300. This is because the French number system adds a prefix to the service numbers which tells us for which department of the company the machine is running. SNCF Transilien (Ile de France) uses prefix 8.


60 locomotives
order date 09.02.2004
delivery period 08.2006 - 12.2008
homologated for France only
> designation 827301-827360

2nd supplemental order
5 locomotives
order date xx.12.2006
delivery period 12.2008 - 03.2009
homologated for France only
> designation 827361-827365

3rd supplemental order
2 locomotives
order date unknown
delivery period 04.2010 / 07.2010
homologated for France only
> designation 827366 and 827367

operator official website:
http://www.transilien.com
Alstom official website:
http://www.transport.alstom.com


SNCF BB 27300: news
open news
2009-03-08 [FR] two more Primas for SNCF IDF
SNCF Transilien BB 27300: Technical specs
Product name Prima EL2P
Product description asynchrone multi-system electric passengert locomotive
Power system 1,5kV DC / 25kV AC
Total length 19.520 mm
Wheel base 10.600 mm
no. axles / Axle arrangement: 4 / Bo' Bo'
Track gauge 1435 mm
Total weight 89 tonnes
Axle load 22,25 tonnes
Top speed 160 kph
Power rating 4.200 kW
SNCF Transilien BB 27300: Select your Locomotive:
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827301 5 picture(s) available

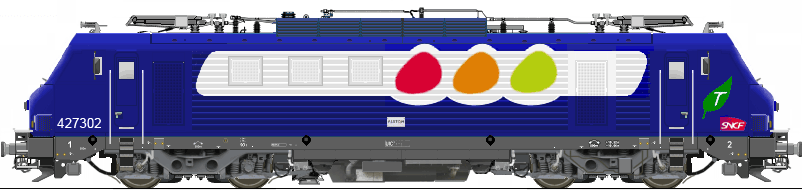

Alstom ? 2006 Prima EL2P Bo'Bo'-el 827302 5 picture(s) available     graphics available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827303 5 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827304 3 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827305 4 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827306 4 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827307 3 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827308 2 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827309 4 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827310 4 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827311 3 picture(s) available
Alstom ? 2006 Prima EL2P Bo'Bo'-el 827312 5 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827313 6 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827314 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827315 3 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827316 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827317 9 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827318 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827319 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827320 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827321 6 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827322 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827323 2 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827324 5 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827325 3 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827326 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827327 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827328 3 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827329 3 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827330 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827331 3 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827332 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827333 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827334 1 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827335 4 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827336 6 picture(s) available
Alstom ? 2007 Prima EL2P Bo'Bo'-el 827337 5 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827338 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827339 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827340 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827341 2 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827342 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827343 5 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827344 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827345 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827346 2 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827347 5 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827348 2 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827349 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827350 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827351 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827352 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827353 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827354 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827355 3 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827356 5 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827357 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827358 2 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827359 4 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827360 5 picture(s) available
Alstom ? 2008 Prima EL2P Bo'Bo'-el 827361 3 picture(s) available
Alstom ? 2009 Prima EL2P Bo'Bo'-el 827362 3 picture(s) available
Alstom ? 2009 Prima EL2P Bo'Bo'-el 827363 5 picture(s) available
Alstom ? 2009 Prima EL2P Bo'Bo'-el 827364 3 picture(s) available
Alstom ? 2009 Prima EL2P Bo'Bo'-el 827365 2 picture(s) available
Alstom ? 2010 Prima EL2P Bo'Bo'-el 827366 4 picture(s) available
Alstom ? 2010 Prima EL2P Bo'Bo'-el 827367 5 picture(s) available
