DB Schenker 189
in short
DB Schenker 189 series
In 1995, German rail operator DB ordered 195 freight locomotives by Siemens-Kraussmaffei, for domestic freight services; the designated 152 series was delivered between 1997 and 2001.

The 1995 order included an option for 100 more locomotives, turned into a fixed order for Siemens in August 1999. The DB decided to take a pretty wild guess, when they decided that these machines had to be fit for true pan-European services, resulting in a technical far more complicated and more expensive machine than a 152 series locomotive, upon the new machine would be based.

Also long before international operability became a key word in European railway operation, Siemens started with the development of new class of locomotives, more advanced and more flexible than ever before. This resulted in the DB designated 189 series, not only a milestone for Siemens, but for the development of the electrical locomotive in general. Thanks to the three-phase current propulsion system and the use of the new IGBT (insulated gate bipolar transistors) technique, it should now be possible to built a reliable locomotive that could run under all 4 voltage systems used in Europe, that would be light (less than 88 t) and compact enough to be homologated for most European countries and that at the same time would be one of the most powerful 4-axle electrics around.

Naturally, this required some serious investments, as the DB had to pay 20% more for each machine now, compared to a 152 series locomotive. Up to 2005 all 100 machines were built and delivered to the DB, that curiously (and unlike competitors that purchased similar machines in the mean time) did not want to rush things when it comes to using these 'Euro'locomotives for real international services; up till December 2007, no 189 series locomotive ran one meter outside the German network during regular service! On the long haul, the 189 will surely expand its service domain towards many neighbouring countries, but it is still questionable if it was wise to order such a large batch of expensive machines that will not be used to their full potential during their first 5-10 years of service, 12 to 25% of their life cycle.

Nevertheless the 189 series, also known under their Siemens designation ES64F4, has taken international freight railways a step further, of which many other operators can profit nowadays.
1 batch – 100 locomotives
order date 13.08.1999
follow-up order of the DB Schenker 152 series
delivery period 04.2003–12.2005
by delivery
homologated for Germany only
operator official website:
http://www.railion.de
Siemens official website:
http://www.siemens.com/ts


DB 189: news
2017
open news
2017-07-14 [NL] White 189 series locomotives of DB Cargo in the Netherlands
open news
2017-05-26 [DE] Siemens sells 189 822 and 823 to Deutsche Bahn
2016
open news
2016-09-30 [NL] DB Cargo 189 072 at Amersfoort: derailment
open news
2016-05-04 [CZ] Bombardier TRAXX AC3 parade
open news
2016-03-03 DB Cargo is the new DB Schenker Rail
2015
open news
2015-05-08 [EU] Siemens completes the retrofit of 32 189 series locomotives with VM50Hz package for service in Poland and the Czech Republic
open news
2015-01-26 [DE] DB Schenker 189 065 back in service
2014
open news
2014-12-27 [DE/PL] DB Schenker in Poland: red 189s replace the black ones
open news
2014-11-29 [DE/CZ/PL] Close-up: DB Schenker 189 060 -version VM50Hz-
open news
2014-10-27 [DE/CZ/PL] DB Schenker 189 057 -version VM50Hz-
open news
2014-09-27 [EU] Railcolor Short
open news
2014-09-01 [DE] Broken 189s in AW Dessau
open news
2014-05-11 [CZ] Super Siemens train in VUZ Velim
open news
2014-04-27 [CZ] New: DB Schenker 189 version VM 50Hz [editedx2]
2013
open news
2013-12-02 [DE] Over and out for DB 189 065? [updated]
open news
2013-10-21 [DE] DB Schenker Rail 189 078 burning
open news
2013-08-04 [DE/NL] DB Schenker 189 074 back in service (crash Düsseldorf-Eller)
open news
2013-06-11 [DE] DB Schenker 189 008 back in service
open news
2013-02-24 [DE] R1 overhaul cycle on the 189 series
open news
2013-01-24 [DE/PL/CZ] Siemens to convert 32 DB Schenker Rail 189 series locomotives
open news
2013-01-14 [DE] 189 065: with 30 kph to Köln-Gremberg
open news
2013-01-12 [NL] History: 189 047 at Roosendaal Spoort
2012
open news
2012-12-21 [DE] Train crash in Düsseldorf-Eller [updated]
open news
2012-05-05 [DE/AT] DB Schenker 189s overhauled in... Linz
2011
open news
2011-09-07 [DE/NL] no more Tulips
2010
open news
2010-03-12 [DE/NL] update on 189 with automatic couplers
2009
open news
2009-11-20 [DE/NL] more VJ-189s for DB Schenker (update)
open news
2009-08-22 [DE/NL] more 189s for the Netherlands (update)
open news
2009-08-16 [DE/NL] more 189s for the Netherlands
2008
open news
2008-06-17 [NL] 189 023 powered by Prorail
open news
2008-05-27 [EU] Railcolor Shorts (update)
open news
2008-05-18 [EU] Railcolor Shorts
open news
2008-04-02 [DE] 189 081 is back
open news
2008-03-27 [DE] the DB about its new corporate identity
2003
open news
2003-12-04 [DE] 189s with Railion2 logos
open news
2003-11-11 [NL] 189 004 and 007 at Kijfhoek
open news
2003-09-10 [DE] 189 012 delivered without logos
DB 189: 3 prototypes and serie delivery
The era of the new EuroLok started in September 2002, when one of three prototypes were completed in Munchen-Allach and was being transported to the Velim test circuit in the Czech Republic, followed by other exotic trips to the north of Sweden for trials in extreme weather conditions and Luxembourg to test the 25kVAC equipment.

Test program ended in April 2003 and 189 001-003 were handed over to the German operator. Serie delivered started one month later. The DB career of the original 189 001-003 soon proved to be a short one, as they were already withdrawn again in October-November 2003. The DB demanded 100 identical machines and the prototypes slightly differed form the series batch. In stead of retrofitting them, Siemens decided to replace them by three new machines, again numbered 189 001-003, and integrate the old ones in their own Dispolok fleet.

Next to technical differences, the prototypes looked slightly different from the series batch. They had nice integrated steel rain gutters above the cabin side, no rubber strips. The grey paint on the frame section was just going a little further around the corner on both front sections and initially the design of their entrance doors was different.

The remaining 97 locomotives were delivered between May 2003 and December 2005.

brand new prototype locomotive 189 003

DB 189: basic liveries
the basics
Between 1996 and 2007, the operator of the 189 series changed name several times, and so did corporate logos applied on its rolling stock. The basis however remained the same up till now; body in RAL 3020 ‘Verkehrsrot’ and frame/roof tops in RAL 7012 ‘Basaltgrau’. When first machines were delivered, at the end of 2002 and in the early months of 2003, a small DB logo up front and on both sides was the standard. 189 001-003 (prototype batch) and 189 004-011 got them.

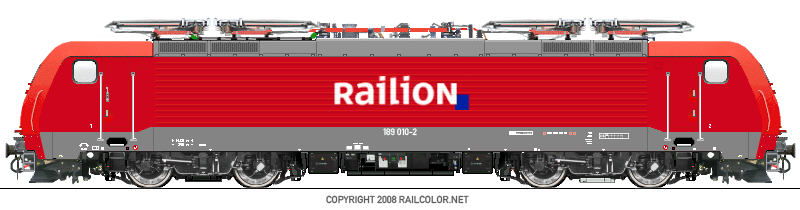

In September 2003 however, Railion became the news standard, including new Railion logos with the small blue square on the right. 189 010, at that moment still waiting in Munchen-Allach for official delivery, was the first to get the 'Railion 2' look ('2', as there was already a first Railion look the end of the 90s. A first attempt to introduce the Railion identity, using a similar logo, but with a blue square on the left..).

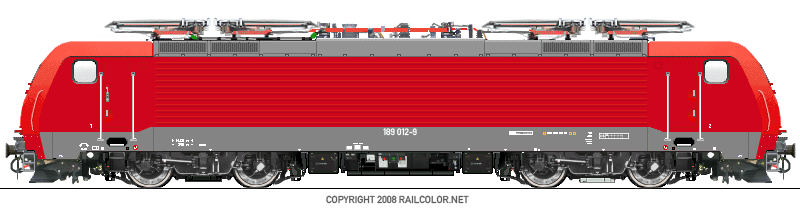

From the 189 012 on, Siemens delivered all new 189 series locomotives without logos, as Railion would apply them when they would be handed over to the operator in Nurnberg. This however only happened to 189 013, 022-025, 030-031, 038-042, 046-049 and 052 (detail: 189 030 and 048 only got them on both cab fronts). Others, including the three prototype replacement locomotives, went into service being ‘naked’. 189 054-099 were delivered with Railion2 logos by Siemens. At the end of 2005, Railion DB Logistics was the new official name of the operator, only promoted by the very last machine of its batch, 189 100, because it was handed over to the DB with a small ceremony.

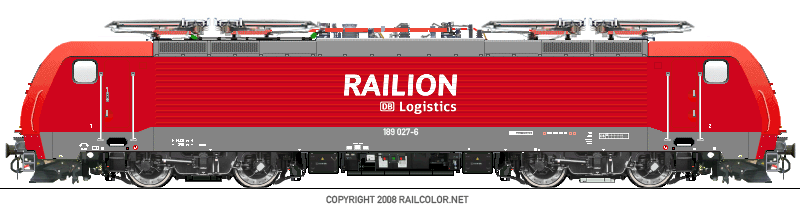

One of four 189s that got Railion DB Logistics logos, in Berlin hauling a passenger train.

livery changes after delivery
Between 2003 and 2007 the design of very few locomotives changed. 189 001II, 002II, and 004 got Railion 2 logos in 2003 and 2004. 189 027 was the first to get DB Logistics logos, in November 2005, 189 010 and 013 followed soon. At the end of 2007, the latest name was introduced; DB Schenker. All machines get small DB logos again, but this has not affected the look of any 189 series machine up til now.

'Holland-Latz'
With the introduction of the 189 in the Netherlands in December 2007, one could say a new standard was created. Dutch rail safety authorities demand that all vehicles on their territory have a bright yellow or white front to increase visibility. 189 065-080, 082-089 and 100, those were selected for services to Holland, got a bright white front, without logos.

DB 189: basic liveries
DB 189: on the BetuweRoute
Between 2003 and 2007, several 189 series locomotives visited the Netherlands. Especially the BetuweRoute was a popular destination. 189 004, 007, 010 and 013 were frequent visitors, used for trials that would eventually lead to homologation of the 189 series in Holland and at the same they could be used to evaluate the BetuweRoute infrastructure and train detection systems. 189 016 was assigned to the official BetuweRoute test train, from June 2006 to December 2006. It got special logos for this.
DB 189: 189 090-099 sold to MRCE Dispolok
an ex-Railion 189, not hard to recognize..

Banks, governmental bodies and other financial companies have always been involved in financing rolling stock, often requiring a considerable investment for an operator. But since the late 90s there is a new phenomenon in the railway market; leasing companies that explicitly profile themselves as top providers of rolling stock for railway operation. Like for airplanes, see-ships, automobiles, one can now lease or hire a locomotive for a certain period of time. In Europe, Angel Trains Europe (ATE), Mitsui Rail Capital Europe (MRCE), CBRail and Allco are examples of companies investing large sums of money into the rail way market, slowly replacing the good old state operators as leading customers for the industry.

The DB decided to close a deal with MRCE back in 2006. The leasing company would buy 10 of their 189 series locomotives, designated 189 090-099, to be leased back to the DB again; a construction called sale-lease-back. The DB earns some money; Mitsui invests in relatively new locomotives, ready for service. All machines got a little shield in every cabin, saying that they were now official property of MRCE. In May 2007, 189 095 was even painted all black, the corporate colour of MRCE.

But then the story took a strange turn. In the summer of 2007 MRCE made clear that they now had other plans with the batch of then, involving true international services, serving other customers of the leasing company. From 07.2007 to 01.2008, the contracts with the DB for all 10 machines were ended; their logos removed so they could be rented out to other operators.

In July 2007, 189 090 and 095 were the first ones returned by the DB. They were sent to Berlin for a true metamorphose at the paint shops of Dangelmayer. After that, they were transported to Siemens in Munchen for retrofitting additional train detection equipment, upgrade their software and to mount two extra pantographs.

In January 2008, 189 090 was the very first to leave Munchen, all black and shiny, with new MRCE-Dispolok logos, the MRCE subsidiary that manages all locomotives for customers in the South and Central Europe. 189 092-095 got the same treatment in the months that followed. The machines got new service numbers, but it took quite some time to find a satisfying solution. The problem was that MRCE-Dispolok already operated a considerable fleet of ES64F4 locomotives (the former Siemens Dispolok machines) including machines numberes as ES64F4 090-099. MRCE-Dispolok planned on renumbering the former DB machines as ES64F4 series, but simply taking over the DB numbers was therefore not possible. Only the repainted 189 094 carried service number ES64F4 094 for a short while. Also former Dispolok machine ES64F4 094 was already repainted in black at that time, so for a short time two identical machines were running around. Luckely, 189 093-05 are now on hire to Veolia Cargo, which changed their appearance again, now carrying red and grey vinyls. At this moment, the five former DB-locomotives that are repainted in MRCE-Dispolok colors, only carry designation 'ES64F4' up front. You can only identify them now by there RFI service number, E189 090/092-095.

And 189 091/096-099? Curiously, after being returned by DB Schenker, they were transported to Siemens test center in Wegberg-Wildenrath and retrofitted with all equipment needed for running in Holland. They got a white nose, but kept their red DB livery. Per April 2008 these machines are being used for long-haul services from Germany to Holland and vice versa by...... DB Schenker!

DB 189: Czech Republic
Although having the potential the become a genuine European locomotive, it took quit a long time to start up revenue services that actually crossed the German border. A first, small step was taken in February 2006; since then the 189 003-012 have a restricted approval by the Czech railway authorities to run between Bad-Schandau in Germany and Decin in the Czech Republic.
DB 189: the Netherlands, 1st batch
In December 2007 revenue services to the Netherlands started. For this, Railion had the 189 023 (prototype), 065-080, 082-089, and 100 refitted; All machines got extra pantographs, ETCS detection systems, UIC service numbers and white front surfaces for better visibility, obligatory in Holland. The 189s can run on both the classic freight corridors and the BetuweRoute and represent the ES 64 F4 sub type VJ.

189 065 got a special livery to clebrate DBs expansion to the west. 189 023 kept on performing trails. In the summer of 2008 it was hired to ProRail for example for testing on the HSL-Zuid.

Blumen-lok 189 065 attended the opening of a new exhibition about freight transport in the National Railway Museum in Utrecht, the Netherlands, back in November 2007.

DB 189: the Netherlands, 2nd batch
In the Summer of 2009, DB Schenker started the second round of refitting. This time 32 units were adjuested fur running in the Netherlands; 189 024-054 (previously with VA configuration) and 081 (VB2 confiuguration).



During the second round, a machine has re-appeared we haven't seen for a long time: 189 081. Due to damage this machine has been out of service for a long time and did not make it to the first round. After its refit it was spotted a lot in service of DB Autozug, which, since the summer, hired 189s for EC services to Amsterdam.

DB 189: GZ1000 project
In the weekend of 30 and 31 November 2008, Railion performed trials with a 1000 meter freight train over the BetuweRoute, from Oberhausen to Rotterdam. This trial is part of the GZ1000 project, with which the DB is evaulating the every day feasability of extra long freight trains. The project also included a test with an 800 meter train between Hamburg and Denmark that year.

For the Dutch trial, locomotive 189 072 was selected, therefore it got the GZ1000 markings.

189: automatic couplers
In 2009 Siemens and DB Schenker conducted an experiment with unit 189 065, during which it was equipped with Faiveley Transpact TTK automatic couplers, also known as C-AKv couplers. The results were promising because DB Schenker decided to equip 18 units, then to be used for the heavy ore trains from Rotterdam [NL] to Dillingen [DE], replacing 6400 diesel units in the Netherlands and the 151 series in Germany.

Siemens started the refit-program in February 2010, the first four units were outshopped in Munich on 06.03.2010. These units are easily recognized by the yellow painted couplers and yellow warning vinyls are their frame ends.

The 189 030-032 and 036 left Munich in 06.03.2010, heading for Gremberg.

DB 189: Select your Locomotive:
Siemens 20669 2002 ES 64 F4 Bo'Bo'-el 189 001-1 46 picture(s) available   revision data available graphics available
Siemens 20686 2003 ES 64 F4 Bo'Bo'-el 189 001-1 37 picture(s) available allocation data available revision data available
Siemens 20670 2002 ES 64 F4 Bo'Bo'-el 189 002-9 28 picture(s) available   revision data available graphics available
Siemens 20689 2003 ES 64 F4 Bo'Bo'-el 189 002-9 34 picture(s) available allocation data available revision data available
Siemens 20671 2002 ES 64 F4 Bo'Bo'-el 189 003-7 35 picture(s) available   revision data available graphics available
Siemens 20692 2003 ES 64 F4 Bo'Bo'-el 189 003-7 27 picture(s) available allocation data available revision data available
Siemens 20672 2003 ES 64 F4 Bo'Bo'-el 189 004-5 30 picture(s) available allocation data available revision data available
Siemens 20673 2003 ES 64 F4 Bo'Bo'-el 189 005-2 30 picture(s) available allocation data available revision data available
Siemens 20674 2003 ES 64 F4 Bo'Bo'-el 189 006-0 31 picture(s) available allocation data available revision data available
Siemens 20675 2003 ES 64 F4 Bo'Bo'-el 189 007-8 28 picture(s) available allocation data available revision data available
Siemens 20676 2003 ES 64 F4 Bo'Bo'-el 189 008-6 24 picture(s) available allocation data available revision data available
Siemens 20677 2003 ES 64 F4 Bo'Bo'-el 189 009-4 34 picture(s) available allocation data available revision data available
Siemens 20678 2003 ES 64 F4 Bo'Bo'-el 189 010-2 22 picture(s) available allocation data available revision data available
Siemens 20679 2003 ES 64 F4 Bo'Bo'-el 189 011-0 30 picture(s) available allocation data available revision data available
Siemens 20682 2003 ES 64 F4 Bo'Bo'-el 189 012-8 19 picture(s) available allocation data available revision data available
Siemens 20681 2003 ES 64 F4 Bo'Bo'-el 189 013-6 31 picture(s) available allocation data available revision data available
Siemens 20684 2003 ES 64 F4 Bo'Bo'-el 189 014-4 26 picture(s) available allocation data available revision data available
Siemens 20685 2003 ES 64 F4 Bo'Bo'-el 189 015-1 42 picture(s) available allocation data available revision data available
Siemens 20687 2003 ES 64 F4 Bo'Bo'-el 189 016-9 23 picture(s) available allocation data available revision data available graphics available
Siemens 20688 2003 ES 64 F4 Bo'Bo'-el 189 017-7 24 picture(s) available allocation data available revision data available
Siemens 20690 2003 ES 64 F4 Bo'Bo'-el 189 018-5 41 picture(s) available allocation data available revision data available
Siemens 20691 2003 ES 64 F4 Bo'Bo'-el 189 019-3 26 picture(s) available allocation data available revision data available
Siemens 20693 2003 ES 64 F4 Bo'Bo'-el 189 020-1 35 picture(s) available allocation data available revision data available
Siemens 20694 2003 ES 64 F4 Bo'Bo'-el 189 021-9 22 picture(s) available allocation data available revision data available
Siemens 20696 2003 ES 64 F4 Bo'Bo'-el 189 022-7 33 picture(s) available allocation data available revision data available
Siemens 20697 2003 ES 64 F4 Bo'Bo'-el 189 023-5 22 picture(s) available allocation data available revision data available graphics available
Siemens 20699 2003 ES 64 F4 Bo'Bo'-el 189 024-3 28 picture(s) available allocation data available revision data available
Siemens 20700 2003 ES 64 F4 Bo'Bo'-el 189 025-0 21 picture(s) available allocation data available revision data available
Siemens 20702 2003 ES 64 F4 Bo'Bo'-el 189 026-8 12 picture(s) available allocation data available revision data available
Siemens 20703 2003 ES 64 F4 Bo'Bo'-el 189 027-6 15 picture(s) available allocation data available revision data available
Siemens 20705 2003 ES 64 F4 Bo'Bo'-el 189 028-4 20 picture(s) available allocation data available revision data available
Siemens 20706 2004 ES 64 F4 Bo'Bo'-el 189 029-2 21 picture(s) available allocation data available revision data available
Siemens 20708 2004 ES 64 F4 Bo'Bo'-el 189 030-0 18 picture(s) available allocation data available revision data available
Siemens 20709 2004 ES 64 F4 Bo'Bo'-el 189 031-8 17 picture(s) available allocation data available revision data available
Siemens 20710 2004 ES 64 F4 Bo'Bo'-el 189 032-6 23 picture(s) available allocation data available revision data available
Siemens 20711 2004 ES 64 F4 Bo'Bo'-el 189 033-4 23 picture(s) available allocation data available revision data available
Siemens 20712 2004 ES 64 F4 Bo'Bo'-el 189 034-2 24 picture(s) available allocation data available revision data available
Siemens 20713 2004 ES 64 F4 Bo'Bo'-el 189 035-9 16 picture(s) available allocation data available revision data available
Siemens 20714 2004 ES 64 F4 Bo'Bo'-el 189 036-7 24 picture(s) available allocation data available revision data available
Siemens 20715 2004 ES 64 F4 Bo'Bo'-el 189 037-5 18 picture(s) available allocation data available revision data available
Siemens 20716 2004 ES 64 F4 Bo'Bo'-el 189 038-3 19 picture(s) available allocation data available revision data available
Siemens 20717 2004 ES 64 F4 Bo'Bo'-el 189 039-1 16 picture(s) available allocation data available revision data available
Siemens 20718 2004 ES 64 F4 Bo'Bo'-el 189 040-9 16 picture(s) available allocation data available revision data available
Siemens 20720 2004 ES 64 F4 Bo'Bo'-el 189 041-7 22 picture(s) available allocation data available revision data available
Siemens 20722 2004 ES 64 F4 Bo'Bo'-el 189 042-5 23 picture(s) available allocation data available revision data available
Siemens 20725 2004 ES 64 F4 Bo'Bo'-el 189 043-3 22 picture(s) available allocation data available revision data available
Siemens 20726 2004 ES 64 F4 Bo'Bo'-el 189 044-1 20 picture(s) available allocation data available revision data available
Siemens 20728 2004 ES 64 F4 Bo'Bo'-el 189 045-8 12 picture(s) available allocation data available revision data available
Siemens 20729 2004 ES 64 F4 Bo'Bo'-el 189 046-6 18 picture(s) available allocation data available revision data available
Siemens 20733 2004 ES 64 F4 Bo'Bo'-el 189 047-4 23 picture(s) available allocation data available revision data available
Siemens 20737 2004 ES 64 F4 Bo'Bo'-el 189 048-2 23 picture(s) available allocation data available revision data available
Siemens 20738 2004 ES 64 F4 Bo'Bo'-el 189 049-0 20 picture(s) available allocation data available revision data available
Siemens 20740 2004 ES 64 F4 Bo'Bo'-el 189 050-8 23 picture(s) available allocation data available revision data available
Siemens 20741 2004 ES 64 F4 Bo'Bo'-el 189 051-6 21 picture(s) available allocation data available revision data available
Siemens 20743 2004 ES 64 F4 Bo'Bo'-el 189 052-4 19 picture(s) available allocation data available revision data available
Siemens 20744 2004 ES 64 F4 Bo'Bo'-el 189 053-2 19 picture(s) available allocation data available revision data available
Siemens 20747 2004 ES 64 F4 Bo'Bo'-el 189 054-0 14 picture(s) available allocation data available revision data available
Siemens 20749 2004 ES 64 F4 Bo'Bo'-el 189 055-7 32 picture(s) available allocation data available revision data available
Siemens 20750 2004 ES 64 F4 Bo'Bo'-el 189 056-5 35 picture(s) available allocation data available revision data available
Siemens 20752 2004 ES 64 F4 Bo'Bo'-el 189 057-3 30 picture(s) available allocation data available revision data available
Siemens 20754 2004 ES 64 F4 Bo'Bo'-el 189 058-1 35 picture(s) available allocation data available revision data available
Siemens 20755 2004 ES 64 F4 Bo'Bo'-el 189 059-9 29 picture(s) available allocation data available revision data available
Siemens 20757 2004 ES 64 F4 Bo'Bo'-el 189 060-7 39 picture(s) available allocation data available revision data available
Siemens 20760 2004 ES 64 F4 Bo'Bo'-el 189 061-5 30 picture(s) available allocation data available revision data available
Siemens 20761 2004 ES 64 F4 Bo'Bo'-el 189 062-3 29 picture(s) available allocation data available revision data available
Siemens 20763 2004 ES 64 F4 Bo'Bo'-el 189 063-1 31 picture(s) available allocation data available revision data available
Siemens 20765 2004 ES 64 F4 Bo'Bo'-el 189 064-9 41 picture(s) available allocation data available revision data available
Siemens 20766 2004 ES 64 F4 Bo'Bo'-el 189 065-6 38 picture(s) available allocation data available revision data available graphics available
Siemens 20768 2004 ES 64 F4 Bo'Bo'-el 189 066-4 19 picture(s) available allocation data available revision data available
Siemens 20981 2004 ES 64 F4 Bo'Bo'-el 189 067-2 21 picture(s) available allocation data available revision data available
Siemens 20982 2004 ES 64 F4 Bo'Bo'-el 189 068-0 29 picture(s) available allocation data available revision data available
Siemens 20984 2004 ES 64 F4 Bo'Bo'-el 189 069-8 17 picture(s) available allocation data available revision data available
Siemens 20985 2005 ES 64 F4 Bo'Bo'-el 189 070-6 16 picture(s) available allocation data available revision data available
Siemens 20987 2005 ES 64 F4 Bo'Bo'-el 189 071-4 25 picture(s) available allocation data available revision data available
Siemens 20989 2005 ES 64 F4 Bo'Bo'-el 189 072-2 25 picture(s) available allocation data available revision data available
Siemens 20990 2005 ES 64 F4 Bo'Bo'-el 189 073-0 22 picture(s) available allocation data available revision data available
Siemens 20992 2005 ES 64 F4 Bo'Bo'-el 189 074-8 19 picture(s) available   revision data available
Siemens 20994 2005 ES 64 F4 Bo'Bo'-el 189 075-5 19 picture(s) available allocation data available revision data available
Siemens 21059 2005 ES 64 F4 Bo'Bo'-el 189 076-3 23 picture(s) available allocation data available revision data available
Siemens 21061 2005 ES 64 F4 Bo'Bo'-el 189 077-1 21 picture(s) available   revision data available
Siemens 21063 2005 ES 64 F4 Bo'Bo'-el 189 078-9 19 picture(s) available allocation data available revision data available
Siemens 21064 2005 ES 64 F4 Bo'Bo'-el 189 079-7 17 picture(s) available allocation data available revision data available
Siemens 21065 2005 ES 64 F4 Bo'Bo'-el 189 080-5 21 picture(s) available allocation data available revision data available
Siemens 21066 2005 ES 64 F4 Bo'Bo'-el 189 081-3 21 picture(s) available   revision data available
Siemens 21067 2005 ES 64 F4 Bo'Bo'-el 189 082-1 21 picture(s) available allocation data available revision data available
Siemens 21068 2005 ES 64 F4 Bo'Bo'-el 189 083-9 15 picture(s) available allocation data available revision data available
Siemens 21069 2005 ES 64 F4 Bo'Bo'-el 189 084-7 18 picture(s) available allocation data available revision data available
Siemens 21070 2005 ES 64 F4 Bo'Bo'-el 189 085-4 16 picture(s) available allocation data available revision data available
Siemens 21071 2005 ES 64 F4 Bo'Bo'-el 189 086-2 16 picture(s) available allocation data available revision data available
Siemens 21072 2005 ES 64 F4 Bo'Bo'-el 189 087-0 17 picture(s) available allocation data available revision data available
Siemens 21073 2005 ES 64 F4 Bo'Bo'-el 189 088-8 15 picture(s) available allocation data available revision data available
Siemens 21075 2005 ES 64 F4 Bo'Bo'-el 189 089-6 16 picture(s) available allocation data available revision data available
Siemens 21076 2005 ES 64 F4 Bo'Bo'-el 189 090-4 46 picture(s) available allocation data available revision data available graphics available
Siemens 21077 2005 ES 64 F4 Bo'Bo'-el 189 091-2 40 picture(s) available allocation data available revision data available graphics available
Siemens 21078 2005 ES 64 F4 Bo'Bo'-el 189 092-0 33 picture(s) available allocation data available revision data available graphics available
Siemens 21079 2005 ES 64 F4 Bo'Bo'-el 189 093-8 44 picture(s) available allocation data available revision data available graphics available
Siemens 21080 2005 ES 64 F4 Bo'Bo'-el 189 094-6 39 picture(s) available allocation data available revision data available graphics available
Siemens 21081 2005 ES 64 F4 Bo'Bo'-el 189 095-3 42 picture(s) available   revision data available graphics available
Siemens 21082 2005 ES 64 F4 Bo'Bo'-el 189 096-1 65 picture(s) available   revision data available graphics available
Siemens 21083 2005 ES 64 F4 Bo'Bo'-el 189 097-9 38 picture(s) available allocation data available revision data available graphics available
Siemens 21084 2005 ES 64 F4 Bo'Bo'-el 189 098-7 51 picture(s) available   revision data available graphics available
Siemens 21085 2005 ES 64 F4 Bo'Bo'-el 189 099-5 53 picture(s) available allocation data available revision data available graphics available
Siemens 21086 2005 ES 64 F4 Bo'Bo'-el 189 100-1 27 picture(s) available allocation data available revision data available
Siemens 21617 2010 ES 64 F4 Bo'Bo'-el E 189 822 44 picture(s) available   revision data available graphics available
Siemens 21627 2011 ES 64 F4 Bo'Bo'-el E 189 823 33 picture(s) available   revision data available graphics available
