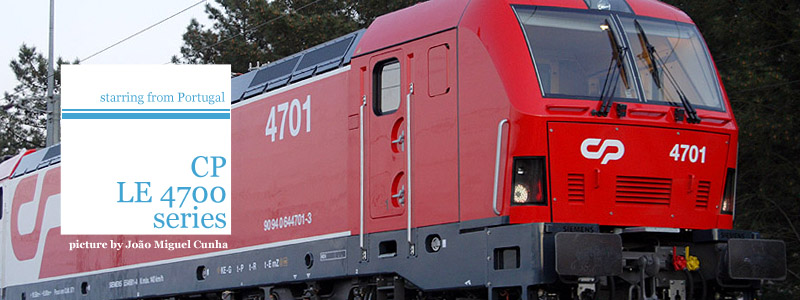

In 2006 the Portuguese national railways decided to order a new medium power electric locomotive for mixed services. Siemens got the order for fifteen locomotives, plus ten units as option. It was the second time, the Portuguese railways selected Siemens, as the German manufacturer also built the LE5600 series back in the nineties.
The design of the LE 4700 series is based on a downgraded version of the ES64U4 platform. Downgraded as it only has 4600 kW duration power and compatible with 3kV DC and 25kV AC voltage systems. It has Iberian gauge bogies. It was the first EuroSprinter with a drivers' cab design, compliant with the latest safety standards. Later on, it was also used for the Belgian HLE18 series and for the Vectron base platform. The CP designed the new livery for the LE4700, red and white including large abstracted CP logos.

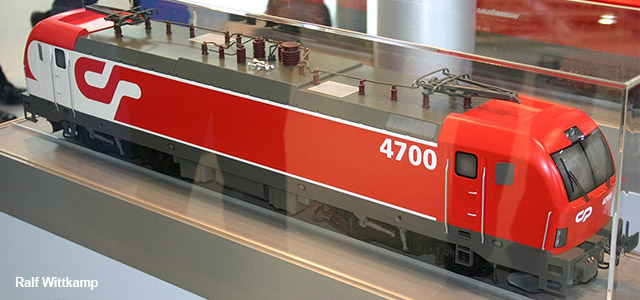

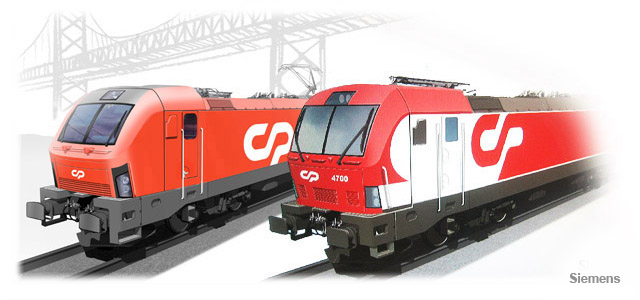

First artist impressions of the future LE4700 appreared in 2006, followed by wooden models. First good pictures emerged in March 2008.
Siemens built the first three locomotives in Munich at the end of 2007, which were then transported to Portugal. All other machines were delivered as kits to Emef in Portugal, which assembled them, during 2008 and 2009. In 2007 the CP decided to order the optionally ten units, which were also delivered in 2009.
|
|
|
15 locomotives |
order date 10.01.2006 |
delivery period 07.2008 - 02.2009 |
homologated for Portugal only, 1668 mm Iberian gauge |
> designation 4701-4715 |
|
2nd order |
10 locomotives |
order date __.02.2007 |
delivery period: __.2009 - __.2009. |
homologated for Portugal only, 1668 mm Iberian gauge |
> designation 4716-4725 |
|
operator official website: |
http://www.cp.pt |
Siemens official website: |
http://www.siemens.com/ts |
|
|
|
|
|
|
|
|
2010
|
2010-12-07
|
[PT] new livery for Portuguese LE4700 series
|
|
update 2010|12|07
[PT] new livery for Portuguese LE4700 series
During a presentation about railways in Spain, a livery study emerged of a LE4700 series locomotive in the colours of Cargo Logistics Portugal.
CP LE 4700
|
|
|
2009
|
2009-03-24
|
[PT] CP 4700 series is running!
|
|
update 2009|03|24
[PT] CP 4700 series is running!
Eurailpress.de reports on the temporary permit for the 4700 series to run in Portugal, valid since 20.02.2009. The Portuguese Railways can use these machines for six months. In total 25 units are on order, the picture shows the 4717 in Gaia.
CP LE 4700
|
|
|
|
|
update 2009|01|04
[PT] LE4710
In Portugal, the production of LE4700s continues, this time a portrait of LE4710, amongst many other LE4700s.
CP LE 4700
|
|
|
2008
|
2008-09-08
|
[PT] CPs 4700 in the picture
|
|
update 2008|09|08
[PT] CPs 4700 in the picture
Some up to date pictures of these new machines built in Munchen and assembled in Portugal.
CP LE 4700
|
|
|
|
2008-07-30
|
[PT/DE] delivery of the CP Le4700 series, an update
|
|
update 2008|07|30
[PT/DE] delivery of the CP Le4700 series, an update
CPs new electrics, representing the new Le4700 series are under delivery right now. 4701-4703, completely built by Siemens in Munich, are still used for various trial runs. Le4704 and Le4705, assembled in Portugal, will leave the workshops in August. At least 10 bodies have already been transported from Munich to Portugal for final assembly. In Munich, Siemens has completed the construction of the first batch of 15 machines and has started with building the 10 machines from the follow up order (designated Le4716-4725). - JC/C
CP LE 4700
|
|
|
|
2008-05-10
|
[PT] pictures of Portuguese LE4701 and LE4702
|
|
update 2008|05|10
[PT] pictures of Portuguese LE4701 and LE4702
Both machines now perform trials in double traction:
CP LE 4700
|
|
|
|
2008-04-18
|
[PT] more Le4700s in Portugal
|
|
update 2008|04|18
[PT] more Le4700s in Portugal
The news about the 4702 and 4703 in Portugal was not correct, as a picture of 19.04.2008 proves that at least 4703 is still with Siemens in Munchen-Allach. Sorry for the mistake, hopefully a correct update in the next few days!
CP LE 4700
|
|
|
|
2008-03-20
|
[PT] more pictures of CP LE 4701
|
|
|
2008-03-19
|
[PT] first good picture of CP LE 4701!
|
|
|
2008-03-14
|
[PT] first LE4700 will start trials next week!
|
|
update 2008|03|14
[PT] first LE4700 will start trials next week!
The first EuroSprinter (Siemens designation: ES46B1-A, UIC 90 94 064 4701-3) for the Portuguese Railways has arrived in Portugal and will start static and dynamic trials in next weeks. Right now the machine is in Entroncamento, but next tuesday it will travel to Poceirão, near Lisboa, where static testing will start. From March 25th on, serious test runs are planned between Poceirão and Pinhal Novo. - JC
CP LE 4700
|
|
|
|
2008-02-26
|
[PT] first EuroSprinter for Portugal arrived at Entroncamento!
|
|
update 2008|02|26
[PT] first EuroSprinter for Portugal arrived at Entroncamento!
The first kit for a LE4700 locomotive arrived in Portugal, at the production fascilities of EMEF, the manufacturer which will be responsible for the final assembly of LE4704-LE4725. It concerns a complete, but empty body to become the LE4704.- JC
CP LE 4700
|
|
|
|
|
CP LE 4700: General history |
|
Already back in 2006 the first artist impression fo the LE 4700s were published.
In 2008, the LE 4700 designated EuroSprinter was handed over to the Potuguese national railways. It was the first Siemens electric representing the latest version of the Siemens EuroSprinter platform. The machines have Iberian gauge bogies (1668 mm), and a top speed of 140 kph. Their service domain includes both passenger and freight services. With an eye on the future, the LE 4700s electrical system can easily be adjusted for service under 3 kV DC voltage systems additionally, making it a multi-system machine which can also operate into Spain. Also its bogies can be converted to 1435 mm gauge later on.
The locomotives have a duration power of 4.600 kW. Less than the 6.400kW that has become the standard for Siemens EuroSprinter electrics during the past decade. This lower output was deliberately chosen, as it requires a smaller transformator, saving weight and costly metals.
Siemens was responsible for the complete construction of the first three machines, completed by the end of 2007. With those machines static and dynamic trails will be completed. LE 4701 arrived in Portugal early March 2008, after a long journey by road-transport. At the same moment the first kit (LE 4704) was delivered from Munchen-Allach to Emef, subsidiary of the CP and sub-contractor for assembly of the remaining 22 machines of this order. On 19.03.2008 the LE 4701 made its first public appearance, and the trial phase officially started for this new genereation electrics that will finally lead to a succesful introduction of these elegant EuroSprinters in regular services.
All machines are painted in a distinct red and white livery, designed by the CP, which was officially presented in October 2006. Curious detail is that according to the CP numbering scheme, designation LE 4600 should be assigned to these machines, as it is based on the duration power of the machines, but as this could become confusing as there is already a LE 5600 series, it was chosen to apply the LE 4700 designation.
In September 2006 the final design of the LE 4700 could be admired at the Innotrans 2006 International railway fair in Berlin, in scale 1:20...)
|
|
CP LE 4700: Technical specs |
|
technical specifications |
CP LE 4700 series |
product description |
asynchrone AC electric locomotive |
production period |
2007-2009 |
total number built |
25 |
|
|
track gauge |
1668 mm (1435 mm*) |
traction converter |
IGBT converter |
number of axles |
4 |
axle configuration |
Bo'Bo' |
weight |
87 t |
axle load |
21,75 t |
length of buffers |
19.580 mm |
|
|
power system |
AC 25kV / 50Hz |
Vmax |
140 kph |
duration power rating |
4.600 kW |
tractive effort |
300 kN |
|
|
* prepared for future conversion to European standard gauge, possible with its wheelset exchange feature |
|
|
